Modern home with solar and battery storage at dusk
Inverters · Chargers · Hybrid Systems · LiFePO4 Storage

From sunlight
to socket.

A complete power portfolio from one factory — modified and pure sine wave inverters, DC-DC and smart AC chargers, MPPT hybrid solar inverters, and LiFePO4 energy storage rated for 6,000+ cycles.

0Products in the line-up
0+Battery cycle life
99.9%MPPT efficiency
Scroll
Product Portfolio

Full line.
Every watt covered.

Thirteen products, 40+ models — from a 300W car inverter to a 15.9kWh wheeled home energy station. Click any product for full specifications.

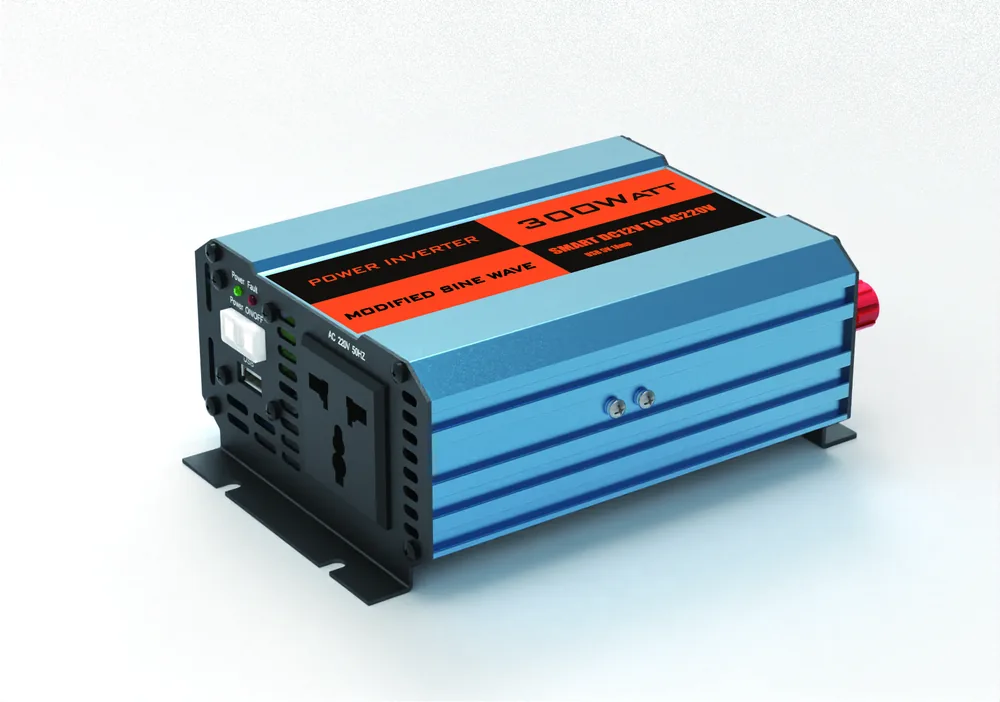

300W–3000W Inverter Modified sine wave inverter 68 series

Modified Sine Wave Inverter

68 Series · 6801–6807

Compact DC-AC inverters for cars, trucks and boats — smart SMT design, auto power restart, USB fast charging and full electronic protection built in.

300–3000WContinuous power
12/24VDCInput voltage
220VAC 50HzOutput
≥85%Full-load efficiency

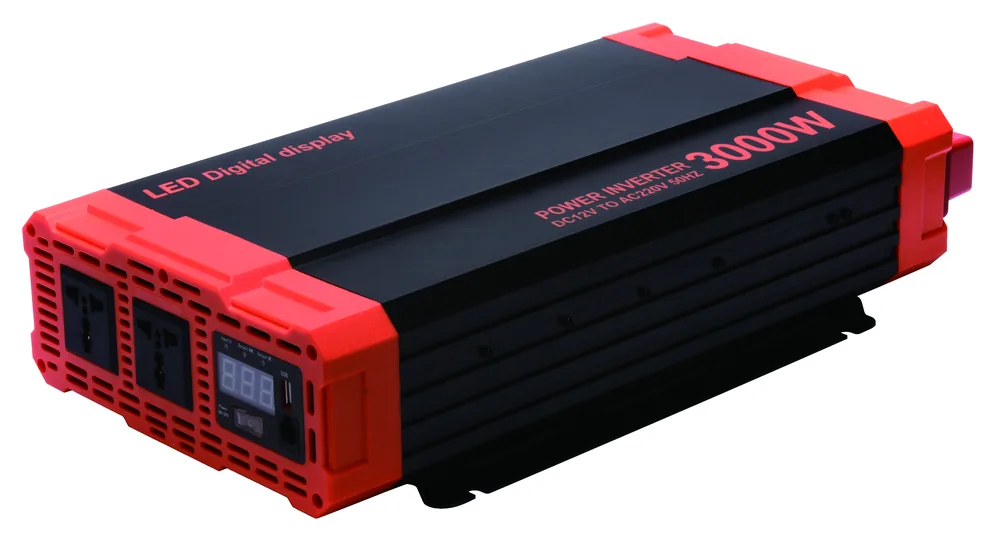

300W–3000W Inverter Modified sine wave inverter 69 series with LED display

Modified Sine Wave Inverter

69 Series · 6901–6907

LED digital display version showing input voltage and output power in real time — with dual universal AC sockets and USB charging on higher-power models.

300–3000WContinuous power
12/24VDCInput voltage
220VAC 50HzOutput
≥85%Full-load efficiency
700W–3000W Inverter Pure sine wave inverter SCC SBE series

Pure Sine Wave Inverter

SCC & SBE Series

Clean utility-grade sine output for sensitive electronics. Heavy-duty aluminum housing, soft start for inductive loads, multiple AC outlets.

700–3000WContinuous power
120/230VAC60Hz / 50Hz output
>90%Efficiency
<3%Total harmonic distortion
20/40/60A Charger DC-DC battery charger ND series

DC-DC Battery Charger

ND Series · ND1212-20/40/60

Battery isolator and 3-stage charger in one rugged unit. Charges service batteries from the alternator — made for RVs, commercial vehicles, boats and yachts.

20/40/60AOutput current
12VDCNominal input
3-StageCharging algorithm
>85%Efficiency @14VDC
3A–15A Charger AC-DC smart battery charger NQ NS series

AC-DC Smart Charger

NQ & NS Series · 1203–1215

Intelligent household chargers with selectable current, dedicated lead-acid and lithium modes, plus battery repair mode to recover tired banks.

3–15AOutput current
110VAC 60HzInput
Pb / LiDual charging modes
>78%Efficiency
1.0 / 1.8kVA Hybrid Inverter Hybrid solar inverter PHSD1000EBL12 PHSD1800EBL12

Hybrid Solar Inverter

PHSD1000EBL12 / PHSD1800EBL12 · 12V

12V solar storage & inverter all-in-one with DSP control, MPPT (99.9%), 4 charging modes and lithium battery activation from AC or PV.

1000 / 1800VARated output
600WMax PV input
<20msSwitchover time
40AMax charge current

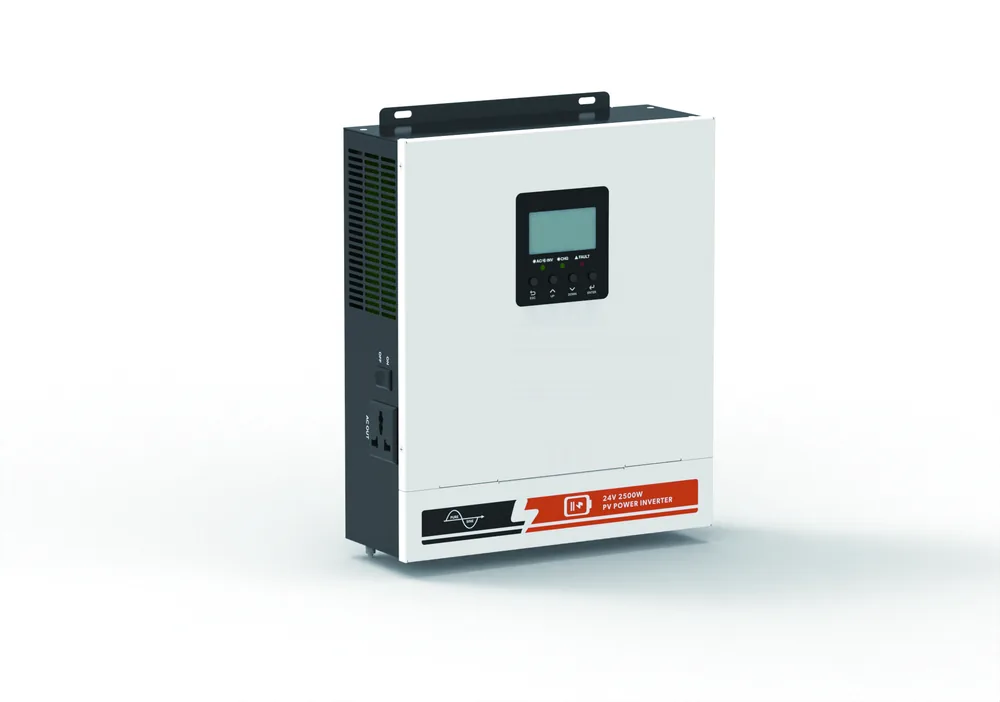

1.5 / 2.5kVA Hybrid Inverter Hybrid solar inverter PHSD1500EBL24 PHSD2500EBL24

Hybrid Solar Inverter

PHSD1500EBL24 / PHSD2500EBL24 · 24V

24V version of the hybrid line — pure sine SPWM output, selectable charging priorities and smart variable-speed fan cooling in a wall-mount chassis.

1500 / 2500VARated output
600WMax PV input
<20msSwitchover time
40AMax charge current
3.5 / 5.5kVA Hybrid Inverter Hybrid solar inverter PHSD3500EBL24 PHSC5500EBH48

Hybrid Solar Inverter

PHSD3500EBL24 / PHSC5500EBH48

High-power hybrid with wide 120–450VDC MPPT range, up to 5,000W PV input, <10ms UPS switchover and 4th hybrid charging mode. CE certified.

3.5 / 5.5kVARated output
4000 / 5000WMax PV input
<10msUPS switchover
CECertification

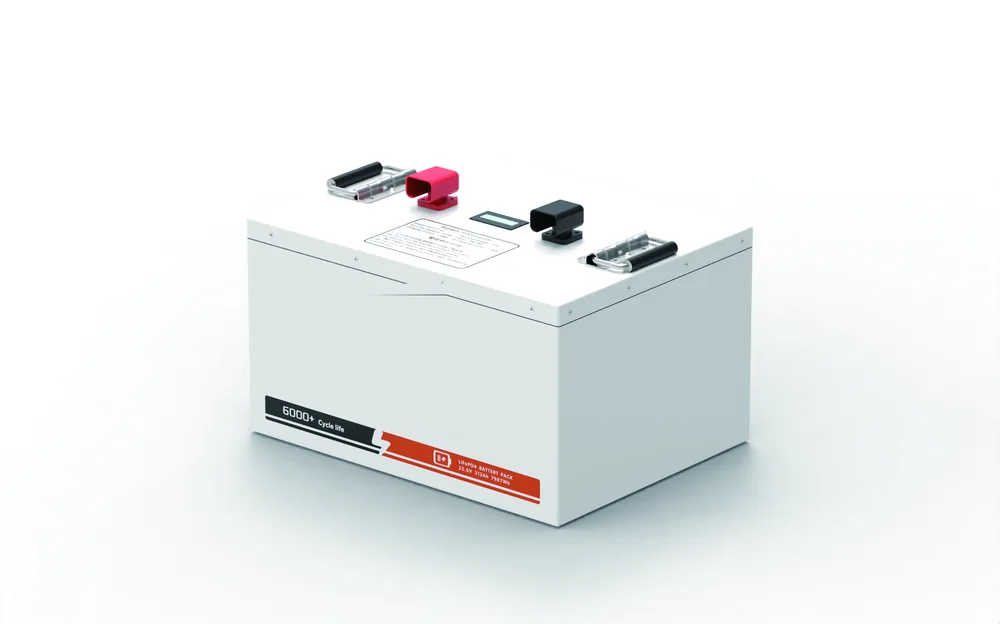

25.6V 312Ah Battery Pack LiFePO4 battery pack 25.6V 312Ah 24312Y-01

LiFePO4 Battery Pack

24312Y-01 / 24314Y-01 · 25.6V

7,987–8,038Wh lithium iron phosphate pack with 6,000+ cycle life, series/parallel capability and on-board state-of-charge display. For home storage, street lighting, base stations and RVs.

312 / 314AhNominal capacity
7987 / 8038WhRated energy
≥6000Cycles @70% DOD
100 / 150AStd / fast charge

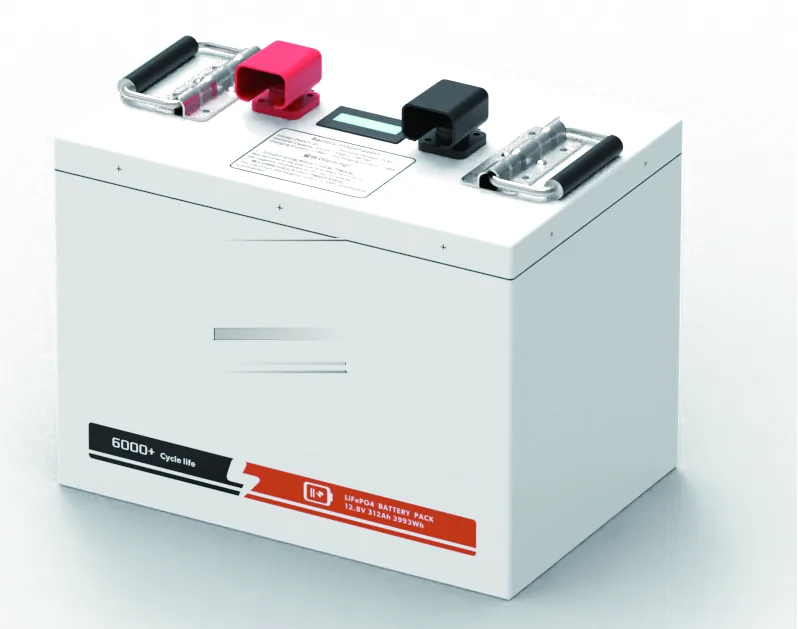

12.8V 312Ah Battery Pack LiFePO4 battery pack 12.8V 312Ah 12312Y-01

LiFePO4 Battery Pack

12312Y-01 / 12314Y-01 · 12.8V

12V system pack with 3,993–4,019Wh of energy. Lightweight and portable at 30.5–31.7kg — powers 12V loads directly or scales via series/parallel.

312 / 314AhNominal capacity
3993 / 4019WhRated energy
≥6000Cycles @70% DOD
50 / 80AStd / fast charge

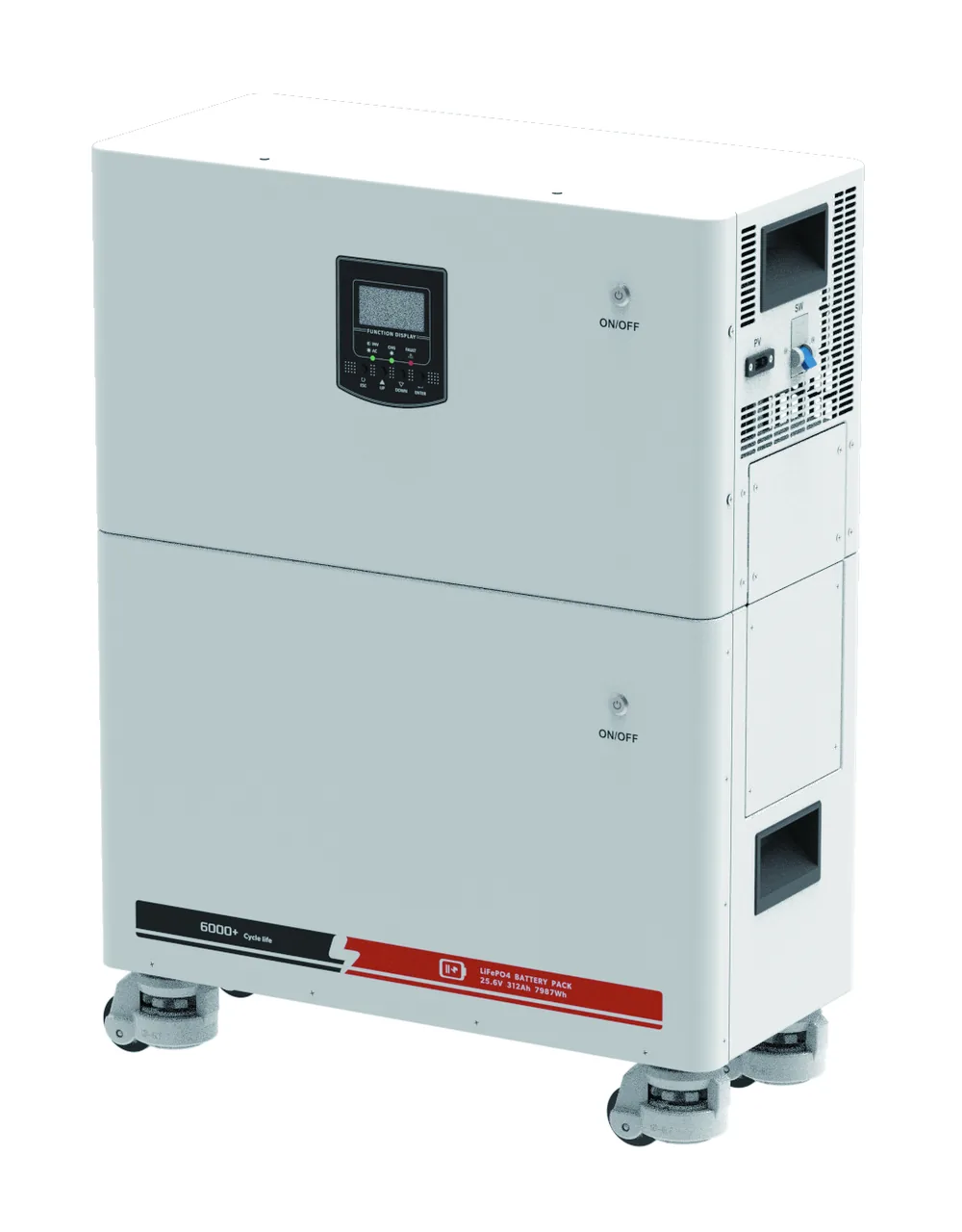

25.6V · 7.99kWh All-in-One ESS Stackable all-in-one energy storage system 24312N-03

Stackable All-in-One ESS

24312N-03 · 24V

3.5kVA hybrid inverter and 7,987Wh LiFePO4 battery fused into one plug-and-play tower on swivel wheels. Solar-priority smart allocation with seamless grid fallback.

3.5kVAInverter output
7987WhBattery energy
4000WMPPT PV input
RS485Communication

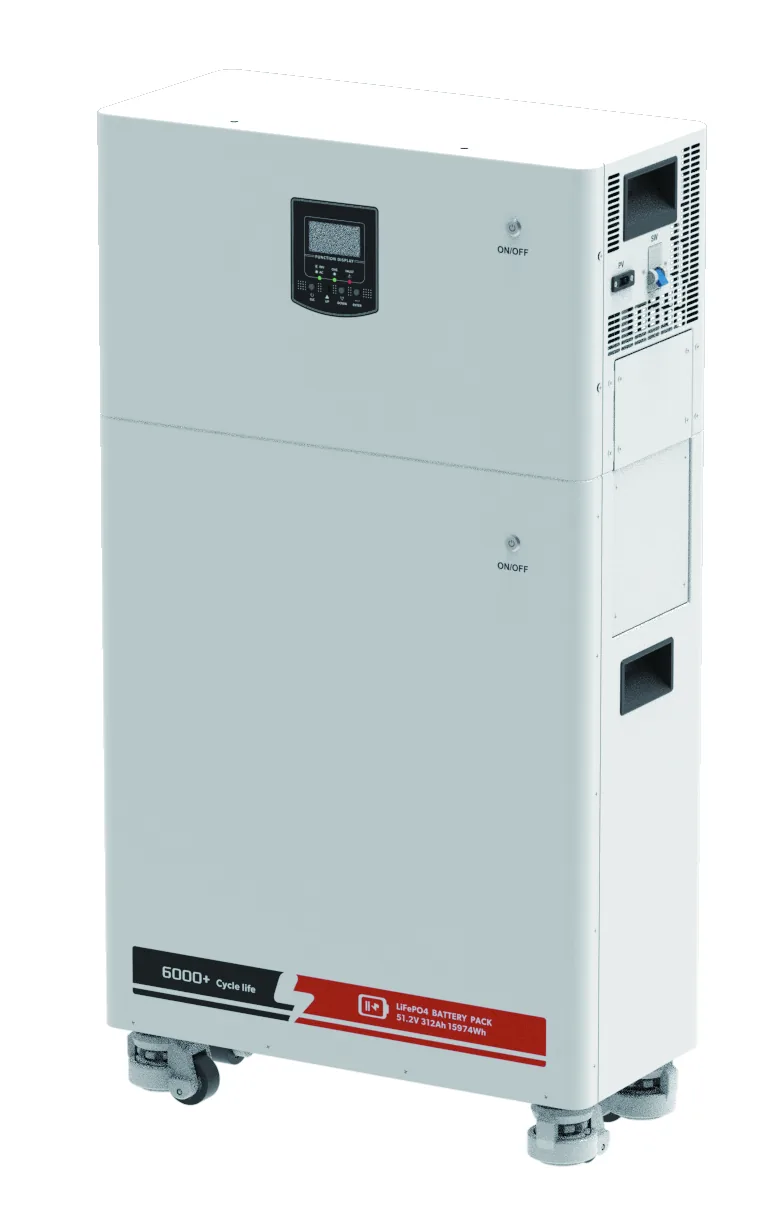

51.2V · 15.97kWh All-in-One ESS Stackable all-in-one energy storage system 48312N-01

Stackable All-in-One ESS

48312N-01 · 51.2V

The big brother: 5.5kVA inverter with 15,974Wh (51.2V 312Ah) of LiFePO4 storage, 5,000W MPPT input and <10ms UPS switchover. CE certified.

5.5kVAInverter output
15974WhBattery energy
5000WMPPT PV input
RS485Communication
25.6V / 51.2V Mobile ESS Floor-standing wheeled energy storage system 24312Y-2 48312Y-1

Floor-Standing ESS

24312Y-2 / 48312Y-1

Wheeled battery stations with smart BMS and host communication. Move it, fix it, or scale it — multiple units connect in series and parallel for more voltage and capacity.

312AhNominal capacity
200AFast charge / discharge
RS485Smart BMS comms
≥6000Cycles @70% DOD
Core Technology

Engineered for a decade of daily cycles.

01

LiFePO4 chemistry, 6,000+ cycles

Verified at 70% DOD, 25°C, 0.2C — retaining ≥80% capacity at end of life. Thermal stability far beyond conventional lithium chemistries.

02

DSP control with SPWM output

Full digital voltage & current dual closed-loop control produces pure sine output with <3% THD — safe for motors, pumps and sensitive electronics.

03

99.9% MPPT solar tracking

Advanced maximum-power-point tracking squeezes every available watt from your PV array, from 20V startup up to 5,000W arrays.

04

360° multi-layer protection

Over/under voltage, over-current, short circuit, reverse polarity and temperature protection — plus lithium battery activation from AC or solar.

0Products in the line-up
0+Models in production
0+Battery cycle life @70% DOD
99.9%MPPT tracking efficiency
Applications

Power, wherever life happens.

Home Backup & UPS

Hybrid inverters switch to battery power in under 10 milliseconds — refrigerators, routers and lights never notice the grid went down. Pair with LiFePO4 packs for days of autonomy.

Hybrid Inverters · Battery Packs

RV, Marine & Overlanding

DC-DC chargers harvest alternator power on the move, sine inverters run appliances off-grid, and smart AC chargers maintain banks in storage. Built tough for boats, yachts and vans.

ND · 68/69 · SCC/SBE · NQ/NS

Solar Self-Consumption

Store daytime PV in LiFePO4 packs and run your evening on sunshine. Four charging modes — solar only, solar priority, grid priority or hybrid — optimize against time-of-use tariffs.

Hybrid Inverters · All-in-One ESS
FAQ

Common questions.

What is the difference between modified sine wave and pure sine wave inverters?

Modified sine wave inverters are cheaper and fine for resistive loads like kettles and incandescent lamps. Pure sine wave inverters produce utility-grade output with <3% total harmonic distortion, which is required for sensitive electronics, inductive motors, pumps and medical equipment.

How long do LiFePO4 battery packs last?

Our LiFePO4 battery packs are rated for at least 6,000 charge cycles at 70% depth of discharge (DOD), tested at 25°C with 0.2C rate. That is more than 10 years of daily cycling while retaining at least 80% of initial capacity.

Can the battery packs work with my existing inverter?

The 12.8V and 25.6V LiFePO4 packs work with most 12V/24V hybrid inverters that support lithium charging profiles. The stackable all-in-one systems have a matched inverter built in, so no separate inverter is needed.

Do you offer OEM/ODM manufacturing?

Yes. We manufacture the full product line in our own factory and offer OEM/ODM service including custom branding, labeling, packaging and parameter adjustment for distributors and installers. Send your requirements via the inquiry form for a tailored quote within 24 hours.

How fast does the hybrid inverter switch to battery power?

The PHSD/PHSC hybrid inverters switch from grid to battery in under 10 milliseconds in UPS mode (under 20ms in appliances mode) — fast enough that computers and routers stay online during a blackout.

Which certifications do your products carry?

The hybrid solar inverters and all-in-one ESS carry CE certification. All products are manufactured under ISO-quality processes, and battery packs are shipped according to UN38.3 transport requirements. Certificate copies are available on request.
